How Should Engineers Estimate Concrete and Reinforcement Quantities for a Custom Home?
By Andres Garcia — Civil Engineer & Construction Cost Specialist, PlayaBuilder
The answer starts with drawings
Concrete and reinforcing-steel quantities cannot be determined responsibly from floor area alone. Two homes with the same gross area can require different structural volumes because their spans, loads, foundations, soil conditions, levels, and structural systems differ.
A preliminary area-based allowance may help at the earliest feasibility stage, but it is not a substitute for a takeoff from coordinated structural drawings.
Concrete quantities are geometric
For a rectangular element, the nominal concrete volume is length multiplied by width multiplied by height, in consistent units. For a beam 0.25 meters wide, 0.50 meters deep, and 5.0 meters long, the nominal volume is 0.625 cubic meters. This is a hypothetical geometric example, not an engineered beam specification.
A takeoff must avoid double-counting intersections between beams, slabs, columns, and walls. Deductions for openings, construction joints, waste allowances, and ordering adjustments should follow the estimating method and the actual construction sequence.

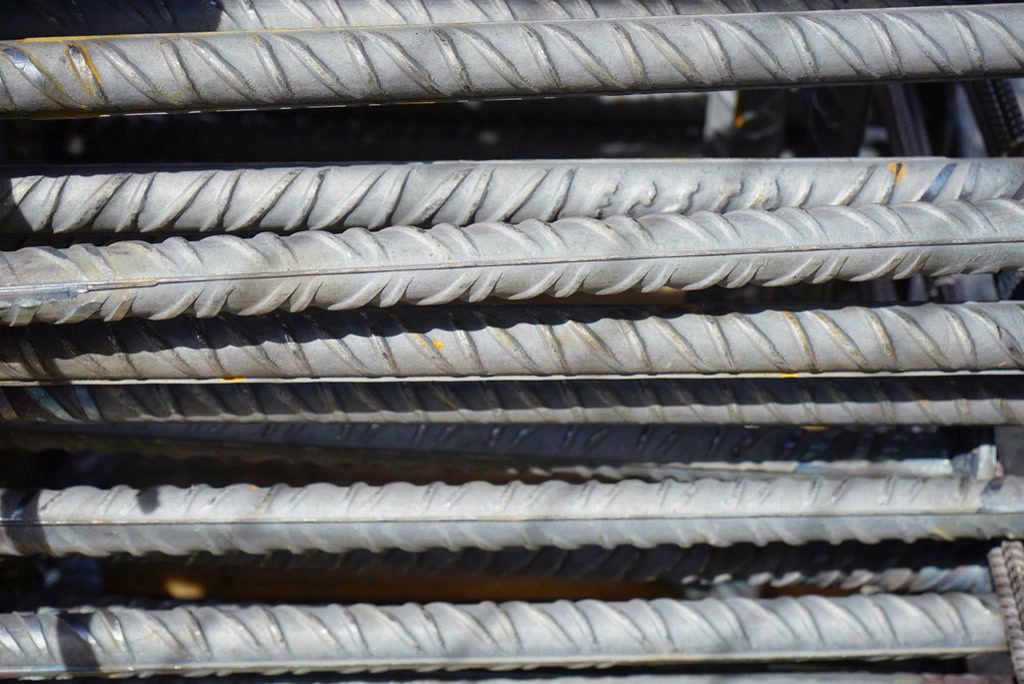

Reinforcement requires a bar schedule
Steel quantity depends on bar diameter, length, number, hooks, bends, laps, anchorage, spacing, and reinforcement detailing. A schedule should connect each bar mark to a specific structural element.
A widely used approximate theoretical mass for a round steel bar is 0.006165 times diameter squared in millimeters, yielding kilograms per meter. For a hypothetical 12 mm bar, this is approximately 0.888 kg per meter. Fabrication and procurement quantities still need allowances for actual cuts and detailing.
Foundation takeoffs are particularly sensitive
Riviera Maya sites may require investigation of local ground conditions before foundation design. The presence of limestone in the region does not justify assuming a single uniform bearing capacity or foundation solution for every lot.
The structural engineer must determine the foundation scheme using relevant site and load information. Estimators should not quietly replace a design-stage uncertainty with a fixed quantity that appears more precise than the information available.
Separate design quantities from purchasing quantities
The theoretical quantity is the amount represented by the drawings. The order quantity can differ because of batching, offcuts, transport constraints, field tolerances, and the selected construction method. These differences should be visible in the budget.
An estimator can present a three-column reconciliation: net design quantity, explicit allowance, and planned purchase quantity. That makes the assumptions reviewable and avoids treating waste as an unexplained increase.
How to review an estimate
Request an itemized takeoff identifying the drawing version, measured elements, dimensions or bar schedules, units, calculation method, and explicit allowances. Changes to slab thickness or beam dimensions must update the takeoff and the budget.
The estimator and designer should also agree which elements are included. A “concrete structure” subtotal is of limited use if the estimate excludes stairs, retaining walls, water tanks, or other designed components.
Define the level of estimate
Concept estimates, schematic estimates, and detailed quantity takeoffs differ in purpose. At feasibility stage, gross floor area multiplied by a benchmark may provide a rough affordability screen. It should be described as preliminary and accompanied by substantial uncertainty. Once structural drawings are available, concrete and reinforcement should be measured by element. The design may require separate quantities for footings, grade beams, columns, walls, slabs, stairs, and other components. Mixing conceptual allowances with detailed quantities without labeling them creates false precision.
The engineer must establish the drawing revision, included structures, measurement convention, units, assumed waste treatment, and scope exclusions. An estimate built from superseded drawings is not made accurate by precise arithmetic. Changes in foundation strategy or slab system can alter quantities materially even when the architectural floor area remains unchanged.
Concrete geometry and intersections
For prismatic elements, basic volume equals section area multiplied by length. For a rectangular footing measuring 1.60 m × 1.60 m × 0.45 m, the theoretical concrete volume is 1.152 m³. Ten identical footings would nominally require 11.52 m³ before adjustments. But the estimator must verify that the dimensions actually apply to every footing and that ground conditions or approved revisions have not changed the schedule. Irregular elements may need to be divided into measured solids or taken off from a validated model.
Double counting is a frequent estimate problem. Where a beam intersects a column or a slab includes a thickened band, the same geometric space should not be counted twice under the chosen measurement rule. Conversely, a deduction rule may specify that some small penetrations are ignored for contractual measurement even though they reduce physical volume. The quantity takeoff must be internally consistent and aligned with how work will be paid and procured.
Reinforcement mass calculation
Rebar is commonly quantified by total cut length and theoretical mass per unit length, with units verified against the governing product specification. For a round steel bar, the geometric mass per length can be approximated from its cross-sectional area and steel density: m/L = πd²ρ/4. If d is in meters and a nominal density of 7,850 kg/m³ is used, a 12 mm bar gives about 0.888 kg/m. This is an illustrative mathematical approximation; actual product tolerances and schedule conventions must be checked.
The bar schedule needs lengths for bends, hooks, anchorage, laps, and other detailing features according to approved drawings and applicable rules. Simply counting the visible span between supports underestimates length. For example, 200 m of nominal 12 mm bar would have a theoretical mass near 178 kg under the assumed density. The purchase quantity can differ because of fabrication offcuts, stock lengths, tolerances, and approved construction allowances.
Separate engineered quantities from procurement
A measured design quantity is not automatically an order quantity. Concrete ordering may require consideration of placement sequence, equipment capacity, yield, unavoidable losses, and supplier delivery constraints. Steel procurement may involve bend schedules, commercial bar lengths, fabrication offcuts, and scheduling of deliveries. These adjustments should appear separately from net installed quantities so that waste and purchasing decisions can be reviewed. Hiding allowances inside every structural element makes later reconciliation more difficult.
A practical takeoff spreadsheet can contain element identifier, drawing reference, dimensions, net concrete volume, reinforcement mark, diameter, number of bars, cut length, mass per meter, theoretical mass, and revision status. The estimator should review unusual values, compare repeated elements, and check whether mechanical and architectural penetrations alter the structural details. Spreadsheet formulas need review as carefully as drawing assumptions.
Estimate uncertainty and design changes
Structural quantities are sensitive to span, building height, soil conditions, architectural openings, load paths, and the selected structural scheme. A room enlargement can increase more than floor area because it may trigger changes to member sizes, reinforcing details, or foundations. The proper conclusion is not that a fixed percentage should always be added, but that the engineer must assess which quantities are affected. At earlier design stages, report a range or clearly state the scope uncertainty rather than presenting one precise number as a commitment.
Once construction begins, actual quantities should be reconciled against the accepted design and authorized modifications. This provides evidence for cost forecasts and procurement planning. It can also identify estimating omissions before they become disputes. Andres's essential point is that quantity estimating is a traceable measurement process; the quality of the answer depends first on the completeness and coordination of the drawings.
A transparent reinforcement quantity example
Take a simplified, hypothetical beam with six longitudinal reinforcing bars, each 5.8 m long after considering its specific scheduled geometry. For illustrative purposes only, assume each bar is 16 mm in diameter and use a nominal unit-mass approximation of d²/162 kg/m, with d in millimeters. The estimated longitudinal mass is 6 × 5.8 × (16²/162) = approximately 55.0 kg. This figure does not include stirrups, laps, couplers, chairs, hooks, or waste, and it must not be used as a bar schedule for construction.
The stirrups must be measured separately because closed-link cutting length depends on actual internal dimensions, cover, bend radii, and hook requirements. A spacing note such as “every 150 mm” cannot be converted to a reliable mass without the length of the zone, end detailing, and bar diameter. Similarly, a drawing revision that changes lap lengths may modify procurement quantities even when the beam dimensions do not change.
For concrete, geometric volume and procurement volume serve different purposes. A slab measuring 6.0 m by 4.0 m at 0.15 m nominal thickness yields 3.60 m³ by simple geometry. Actual takeoff must account for beam intersections, penetrations, thickened zones, approved details, and the contractor's method of measurement. The amount ordered additionally depends on verified waste, placing logistics, and supplier or delivery constraints. A procurement contingency is not additional engineered concrete volume.
A sound estimate therefore keeps three reconciled records: a quantity takeoff tied to drawings; a cost estimate applying unit costs and stated assumptions; and a procurement schedule that accounts for ordering and site execution. Confusing these records is a common source of arguments about why purchased quantities differ from quantities measured in completed work.
Conclusion
Reliable quantity estimating is an exercise in traceability. Concrete quantities come from geometry; reinforcement quantities come from engineering details; the cost comes from quantities multiplied by appropriate unit rates.
The correct number is not the one that looks most precise. It is the one that can be reproduced from the current documents and revised as the design develops.
